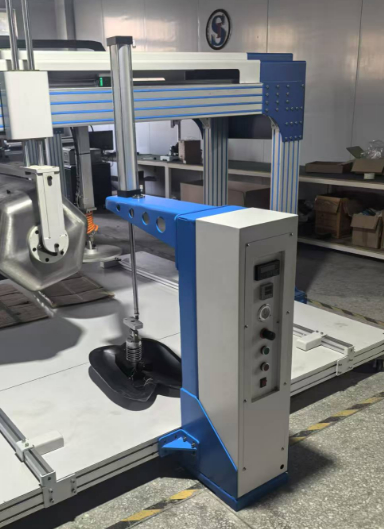

Name: Repeat Compression Tester for Edge of Mattress Testing EN1725 Mattress Edge fatigue test machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: Se trata de una serie de medidas que se aplican a las personas físicas.
Price: 4,500.00 USD
Availability: InStock

Inicio Productos Máquina de pruebas de colchón

Repeat Compression Tester for Edge of Mattress Testing EN1725 Mattress Edge fatigue test machine

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	SKYLINE
Certificación:	CE
Número de modelo:	Se trata de una serie de medidas que se aplican a las personas físicas.

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	negoitable
Detalles de empaquetado:	Caja de madera contrachapada
Tiempo de entrega:	25 días hábiles
Condiciones de pago:	T/T
Capacidad de la fuente:	1 unidad/mes

Contacto

Descripción detallada del producto

Modo de control:	Control del algodón	Placa de presión:	Cilindro neumático
Encimera:	9999 se puede ajustar	Capacidad de carga:	1000n
Ciclo de ensayo:	Mantenerse por (3+/-1) s
Resaltar:	Repeat Compression Tester mattress EN1725 , Mattress Edge fatigue test machine , EN1725 Mattress Testing Machine

Repeat Compression Tester for Edge of Mattress Testing EN1725 Mattress Edge fatigue test machine

Product Specifications

Attribute	Value
Control mode	Botton control
Pressure plate	Pneumatic cylinder
Counter	9999 can be settable
Load capacity	1000N
Test Cycle	Maintain for (3+/-1)s

Machine Introduction

According to EN 1725 test standard for mattress edge testing, using the pressure plate of the buttocks is used to simulate the pressure generated by the human body sitting on the edge of the mattress, and the durability of the mattress edge is tested by repeated compression for a certain number of times.

Technical Parameters

Test load capacity	1000N
Test Cycle	5000
Main time	Maintain for (3+/-1)s

Features

The whole machine frame made of high quality aluminum, with smart and elegant shape
Delta brand PLC and Servo Motors
Machine configuration two motors, one for the vertical direction of the roller, and the other is responsible for the horizontal direction of the drum drive, the two motors are used in DELTA servo motor
Machine configuration alarm device, indicating the safe operation
Electric lifts the Roller, easy to operate
PLC controller with large colorful touch panel
Automatically stops after preset cycles completed
Over moving limit protection
Wooden roller softly contacts the surface of the mattress

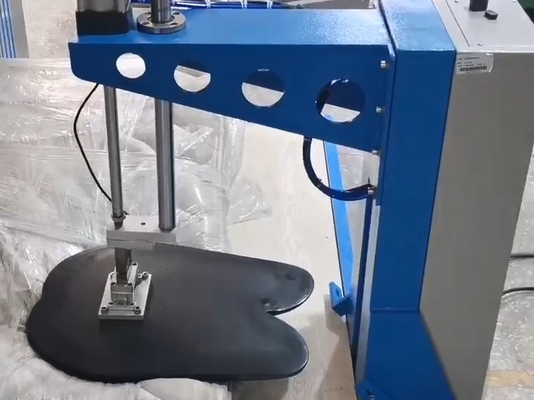

Compression Plate
